It is suitable for grinding of wheelset bearings of various types of freight vehicles such as standard rail RD2, RE2B and Rf2.

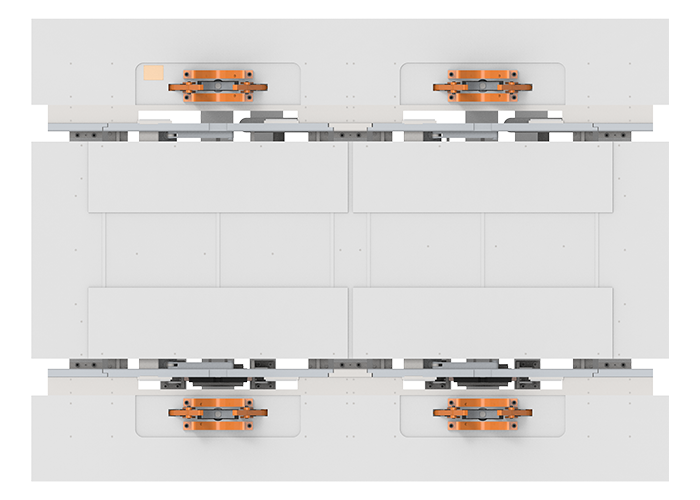

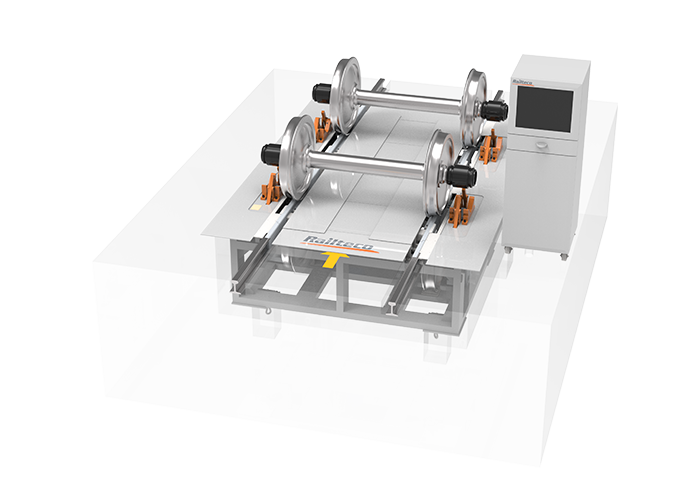

The equipment adopts pit type installation and wheel pair passing design.

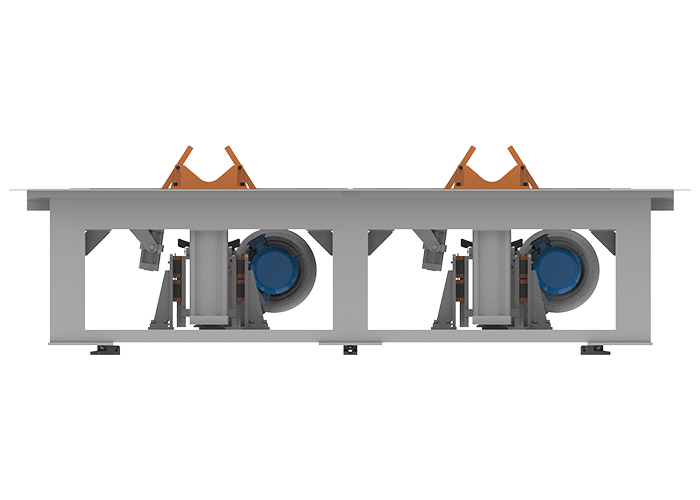

The equipment is driven by friction between the rubber wheel and the tread, and the motorcycle wheel is easy to change and maintain.
The system adopts compressed air as the power source, and the cylinder is used to provide power for lifting, dialing, braking and other actions, which is energy-saving, non-polluting, safe and reliable.
The bearing grinding process is fully automated. It can grind two pairs of wheels at the same time and collect 8-channel temperature signals, or grind only one pair of wheels without interfering with each other.
The equipment can set different grinding parameters, rotational speed parameters and judgment parameters according to different types of wheelsets, and can infinitely expand the types of wheelsets.
The equipment can meet the bearing grinding requirements of the Rules for Assembly and Overhaul of Railway Wagon Wheel Pairs and Rolling Bearings.
