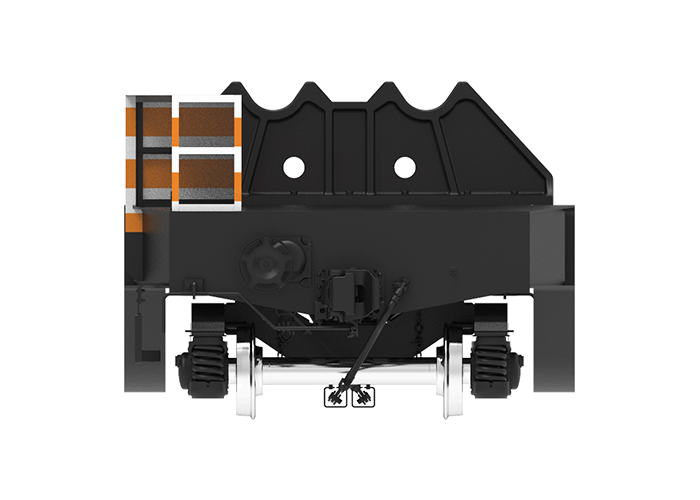

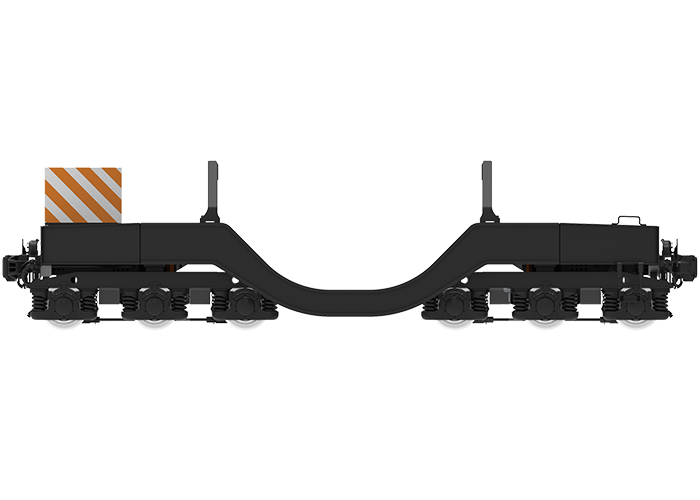

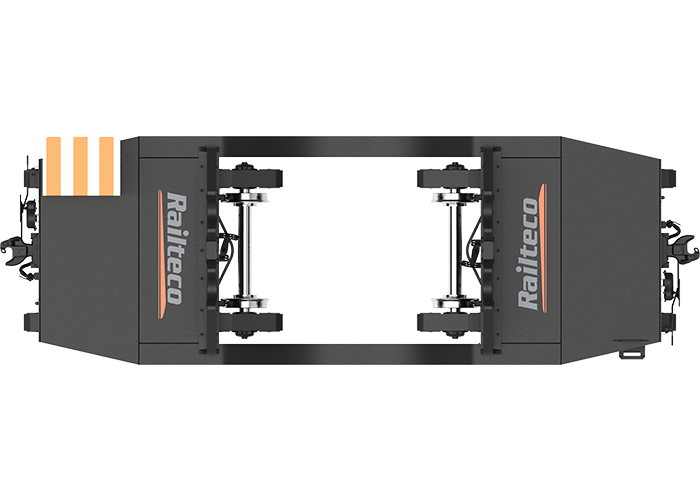

RT-140 METALLURGICAL VEHICLE


Guage
1435mm
Axle load
37t
Load capacity
140t
Tare weight
36t
Speed
30km/h
Coupler height
880mm

DESCRIPTION

Zt140 smelting-pot car is mainly used for 1435mm gauge railway, and mainly used to transport molten iron for Iron and steel smelting industry。

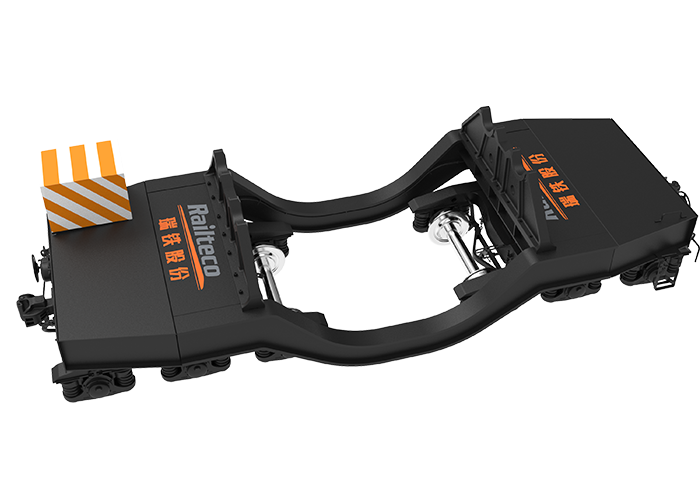

The vehicle is mainly composed of car body, coupler & draft gear, brake device, bogie and so on. All-steel welding structure is used for car body. MT-3 type buffer is used for 13B coupler. The air brake system is mainly composed of 120 air control valve, 14-inch brake cylinder, 11-litre and 60-litre air cylinder, NSW hand brake device is used for ZT140 hot-metal car.
