RTHZ49 Bogie


Gauge
1600mm
Axle load
18t,21t,23.5t,25t
Tare weight
≤4.7t
Wheel base
1650mm
Running speed
30km/h
Diameter
Ø860mm

DESCRIPTION

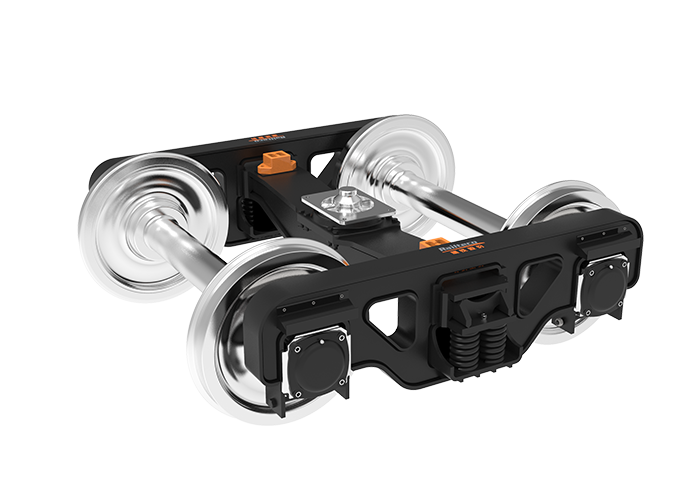

This type of bogie is mainly used for low-speed, heavy-duty metallurgical and special vehicles. It mainly consists of components such as a bolster, side frame, wheelset, and axle box.



This bogie is a welding three piece bogie, with two rigid side bearings installed on both sides of the rocker. The wheels are made of integral rolled steel; Adopting tapered roller bearing, the spring adopts two-stage spring stiffness.

This bogie has a simple structure, reliable strength, and convenient operation and maintenance.
