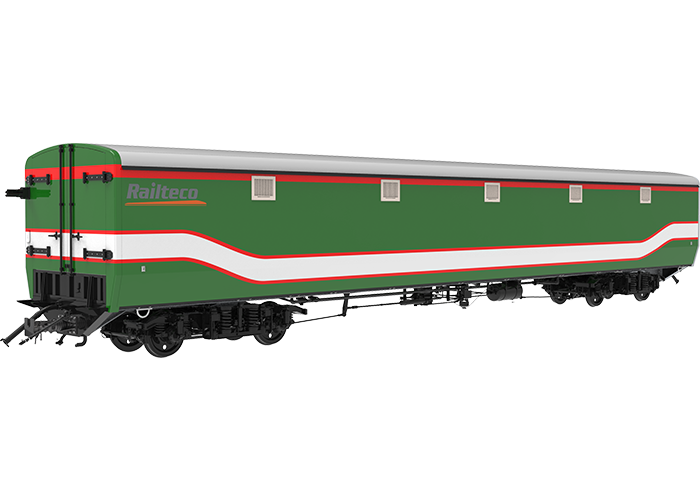

RTK25 MOTOR VAN CONVENTIONAL


Tare weight
21.3t
Axle load
10t
Guage
1000mm
Speed
100km/h
Length
18759mm
Floor height
965mm

DESCRIPTION

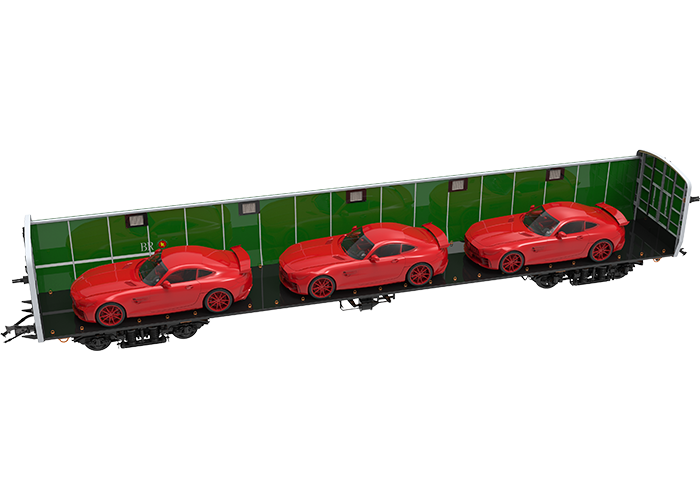

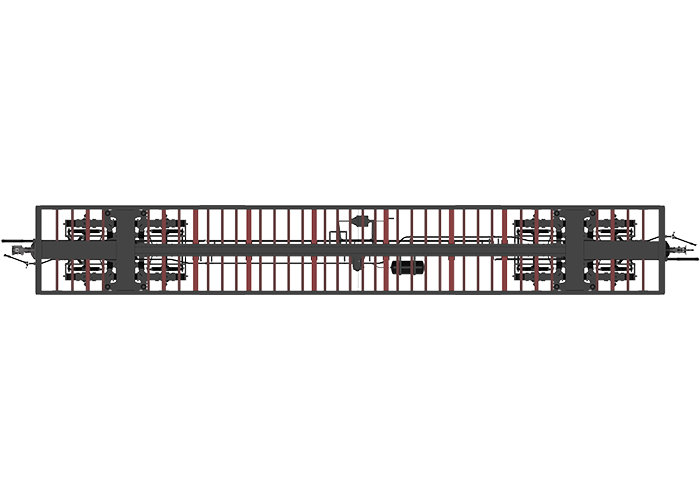

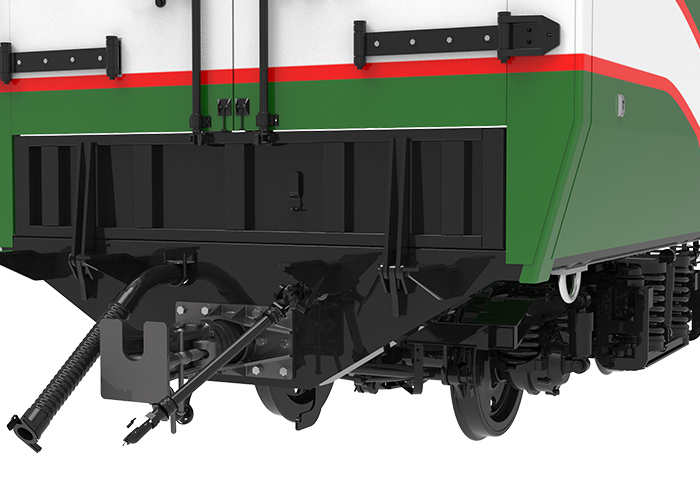

This motor van conventional is suitable for operation on a 1000mm gauge railway in Bangladesh, and is mainly used for transporting cars.The motor van conventional is mainly composed of car body, coupler & draft gear, braking system, electrical device, bogie, etc. The car body is an all-steel welded overall load-bearing structure, mainly composed of underframe, side walls, end doors, roof, ventilators, thermal insulation materials, and vehicle interior decoration. Adopt MCA-PH coupler buffer device. The A end of the car is the HOOK, and the B end of the car is the YOKE.
