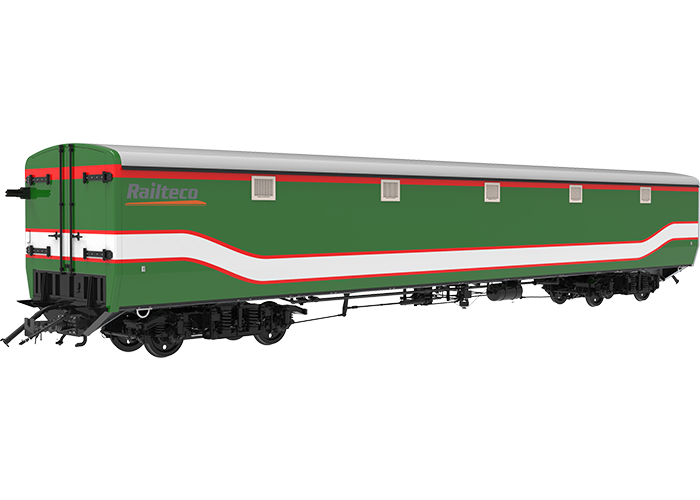

RTK26 SPECIAL CAR CARRIER


Guage
1000mm
Axle load
10t
Tare weight
25.5t
Speed
100km/h
Length
18759mm
Floor height
965mm

DESCRIPTION

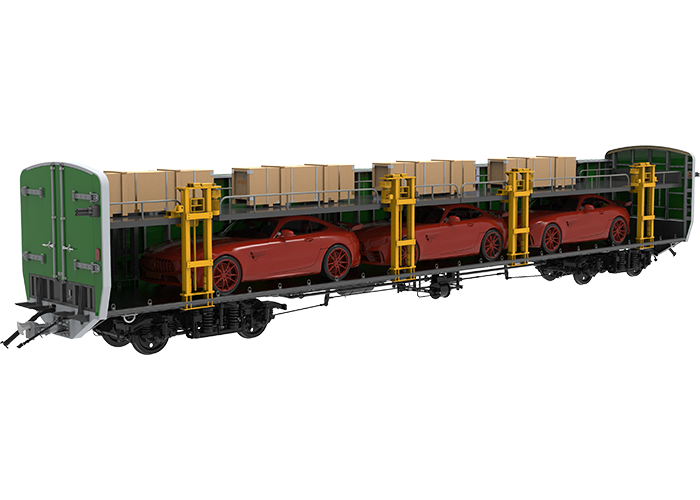

This special car carrier is suitable for operation on a 1000mm gauge railway in Bangladesh, and the lower layer is mainly used for transporting cars, while the upper layer is used for transporting other small goods.

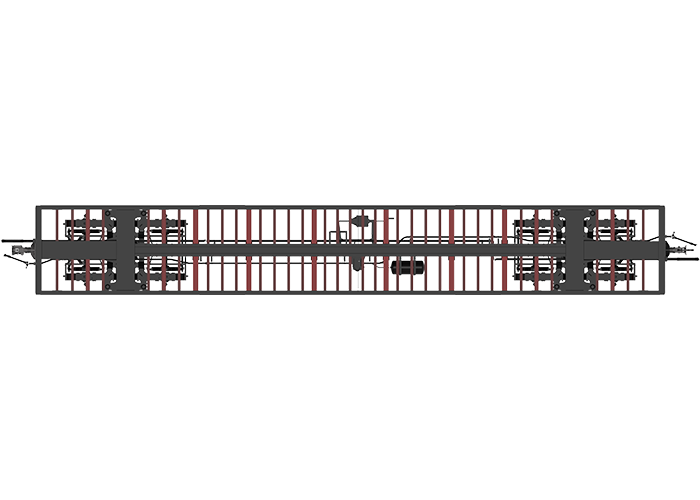

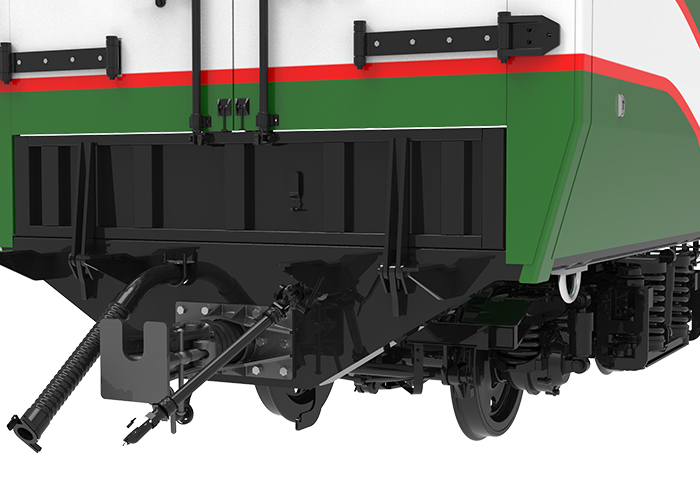

The special car carrier is mainly composed of car body, coupler & draft gear, braking system, electrical device, bogie, etc. The car body is an all-steel welded overall load-bearing structure, mainly composed of underframe, side walls, end doors, roof, upper floor and lifting mechanism, and ventilators. Adopt MCA-PH coupler buffer device.
