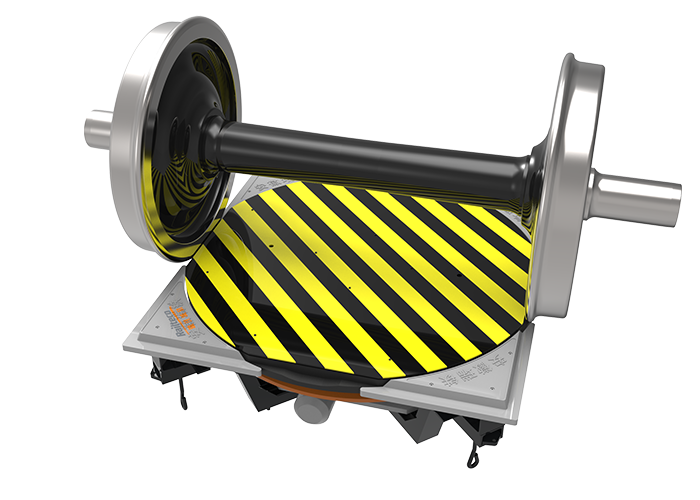

It is mainly applied to standard rail truck, passenger car, bullet train and subway wheelsets quick turn track steering.

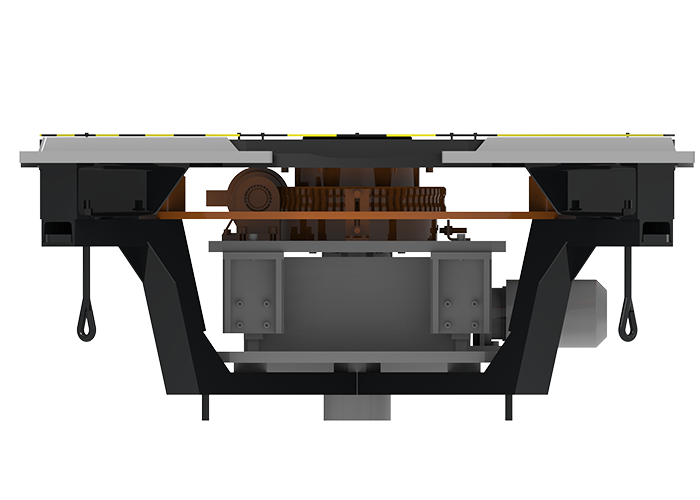

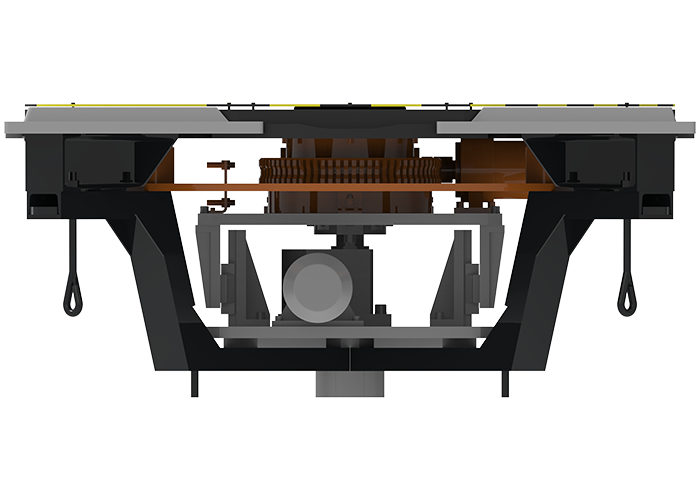

The diameter of the equipment turntable body is smaller than the rail gauge, no need to cut the rail, can be installed on the inside of the rail, when working, the turntable rises from under the wheelset, lifting up the wheel rim of the wheelset, so that the wheelset automatically leave the rail surface 50-70mm, the rotating mechanism according to the requirements of the rotation of the required angle after the positioning of the fall.
The equipment is self-centering structure, and the large diameter thrust ball bearing is arranged under the rotating table of the turntable, which makes the rotation smooth and flexible.
The rotation adopts two control methods: control cabinet and remote control.
