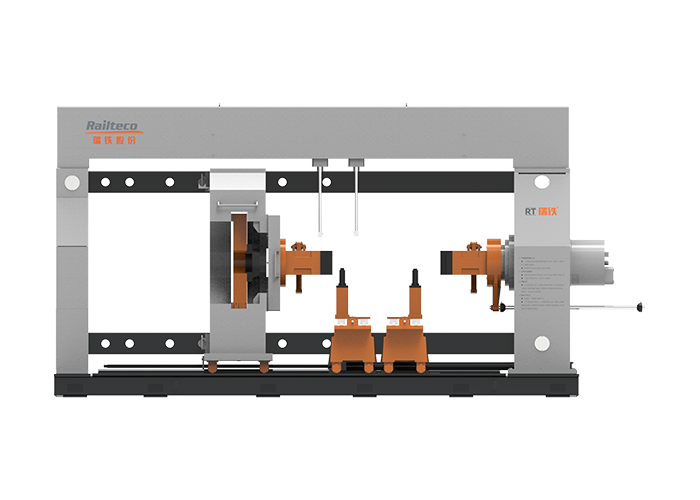

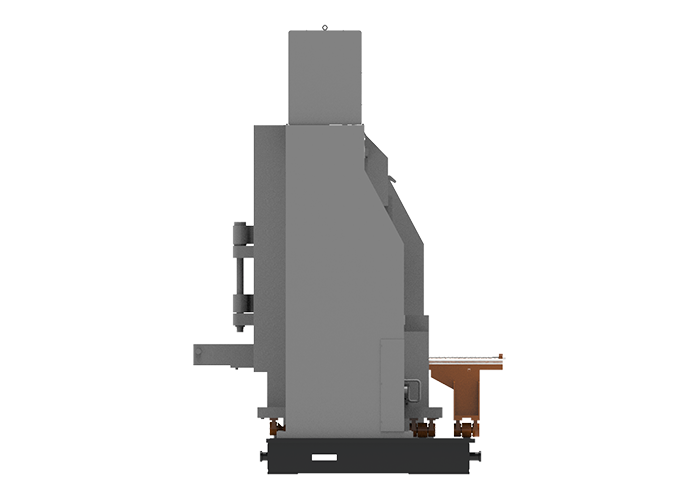

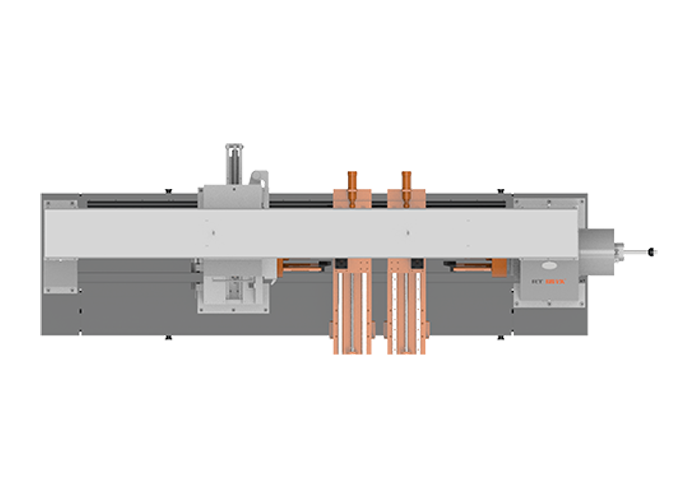

LZC - Wheelset Press-Mounting Machine

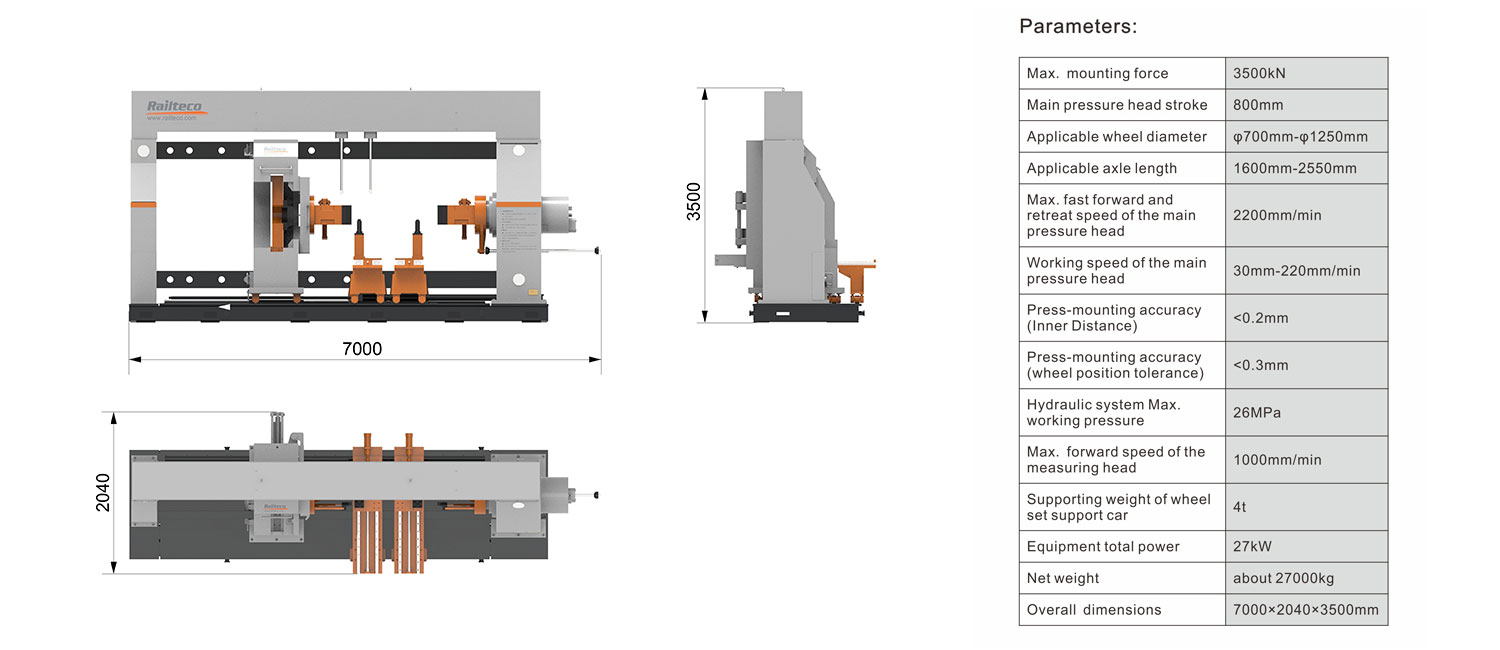

Wheel Diameter
φ700-φ1250mm
Axle Length
1600-2550mm
Indenter
2200mm/min
Host Size
7000*2040*3500mm
Weight
27000kg
Power
27kW

DESCRIPTION

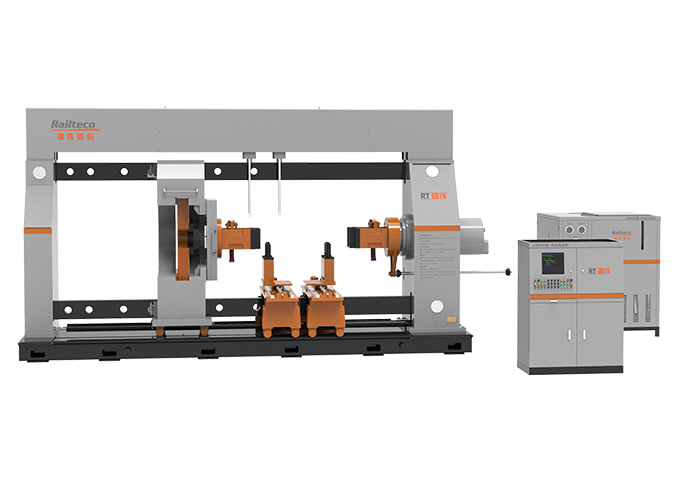

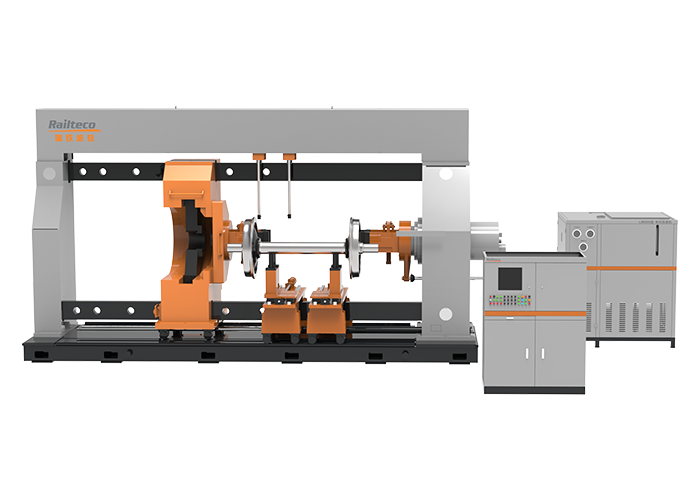

LZC - Wheelset Press-Mounting Machine is used to press-fit and withdraw the wheels, brake discs and gear wheels of railway passenger cars, wagons, EMU, and city rail vehicles. It can also be used for wheel set anti-pressure test operations. Applicable to wheel sets with standard gauge, meter gauge and broad gauge. The equipment is controlled by a microcomputer, which can automatically control and monitor the mounting process. At the same time, it records and prints the press force curves and other press data. Adopting laser measurement technology to better control press-mounting accuracy. Provide cloud-based remote data collection solutions to better serve users.
