GLJ - Wheelset Rolling Machine


Power supply
380V±10%, 50Hz±2%
Motor power
0.55kW
Wind pressure
0.6-0.8MPa
Wheelset Spinning speed
1-5r/min (adjustable)

DESCRIPTION

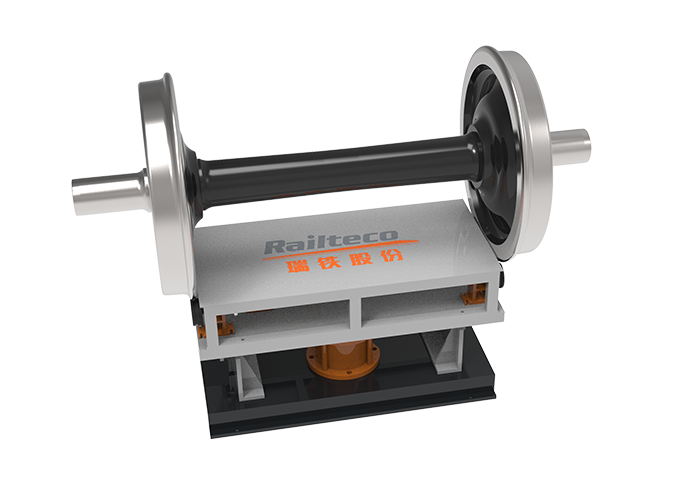

GLJ - Wheelset Rolling Machine (hereinafter referred to as the rolling machine) is used for direct (inverse) rotation of the wagon wheelsets of the railway vehicles, and it is used for manual UT, brushing paint remover, artificial painting, positioning rotation during journal cleaning of various wagon wheelsets such as 60t and 70t wagons. The rolling machine is installed in the pit of the workshop. When it is working, the wheel set shall be pushed into the work station of the rolling machine. The piston rod of the cylinder rises and rises against the platform to lift it.
