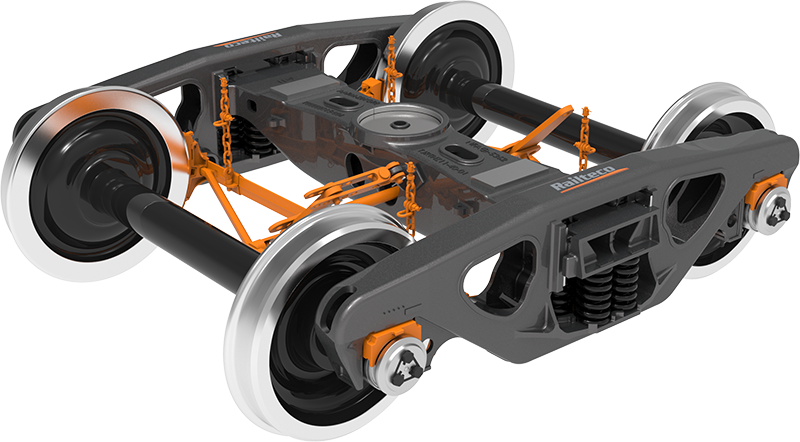

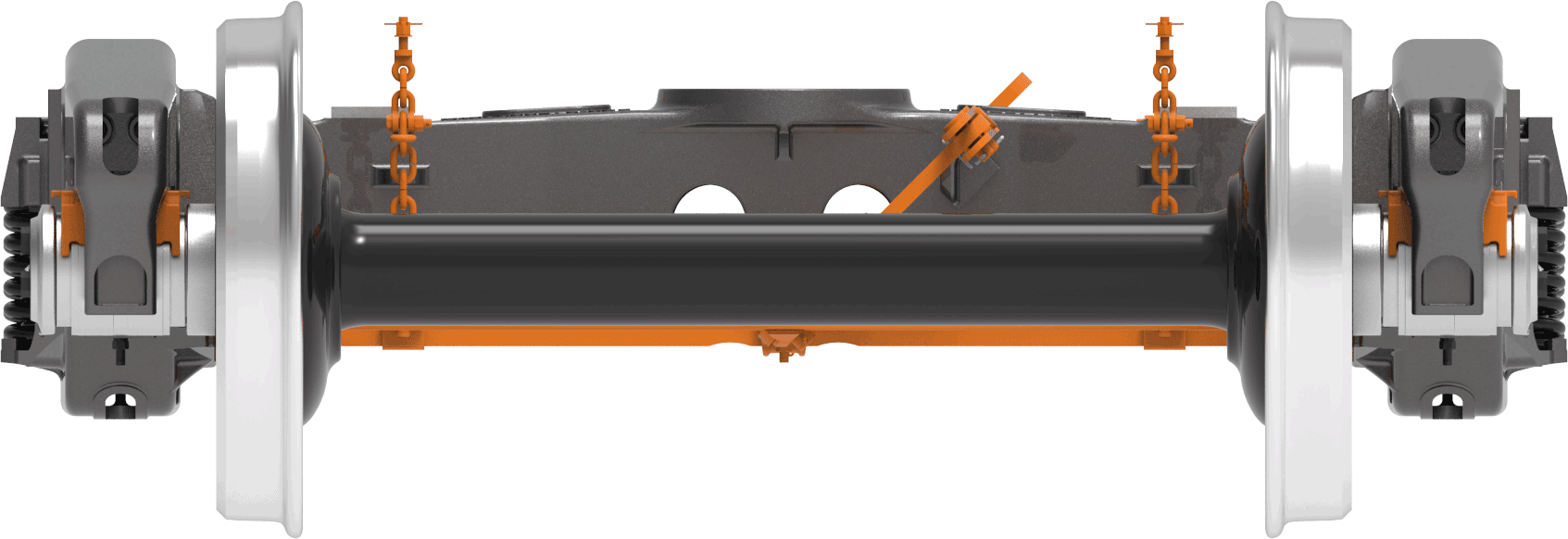

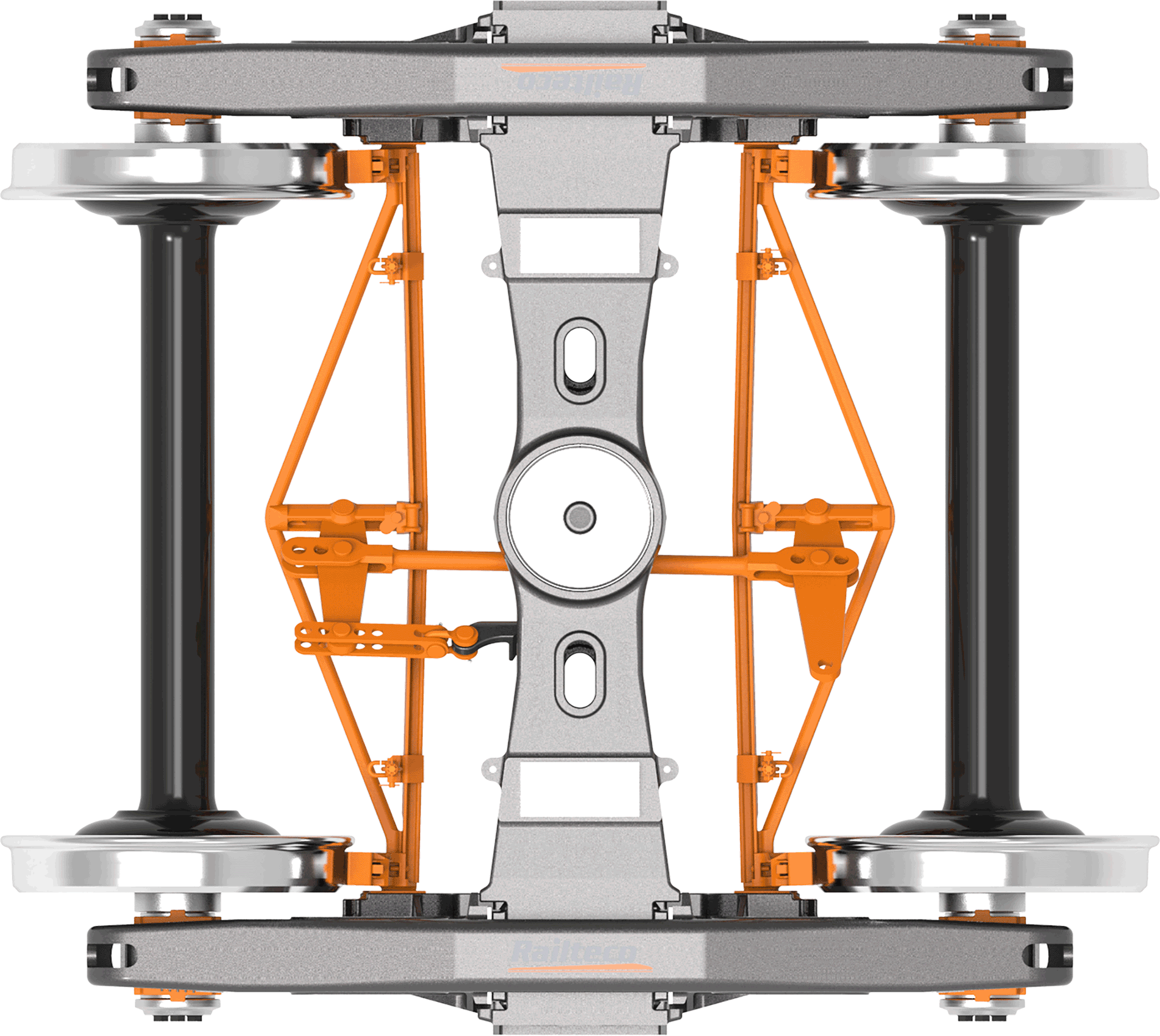

RTHZ11 Bogie


Gauge
1676mm
Axle load
25t
Tare weight
≤4.7t
Wheel base
2032mm
Running speed
80km/h
Diameter
Ø840mm

DESCRIPTION

 This kind of bogie is available to be used on the railway gauge of 1676mm. It is applied for new-making and servicing wagons. The axle load is 25t(Max) and the operating speed(Max) is 80km/h. The arrangement shall permit for ready accessibility for maintenance. This kind of bogie falls into categories of casting steel three-piece bogie. It is mainly comprised of wheel set, side frame, bolster, brake rigging, center spring suspension system, Constant  friction type snubbing  device, roller bearing, and side bearing etc.Axle shall be in accordance with AAR M-101, the journal size of axle is 6ʺ×11ʺ.
