RTHZ16 Bogie


Gauge
1435mm
Axle load
≤14t
Tare weight
≤7t
Wheel base
2200mm
Running speed
80km/h
Diameter
Ø840/770mm

DESCRIPTION

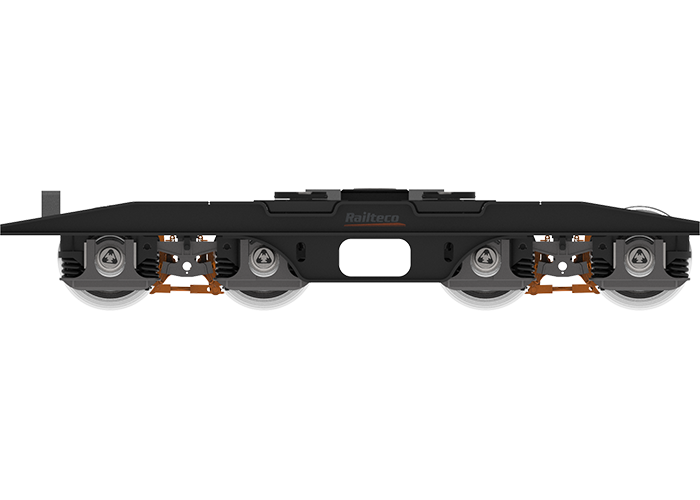

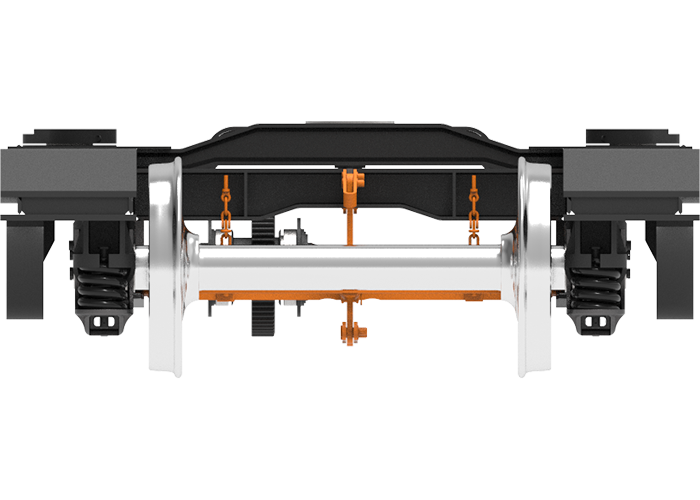

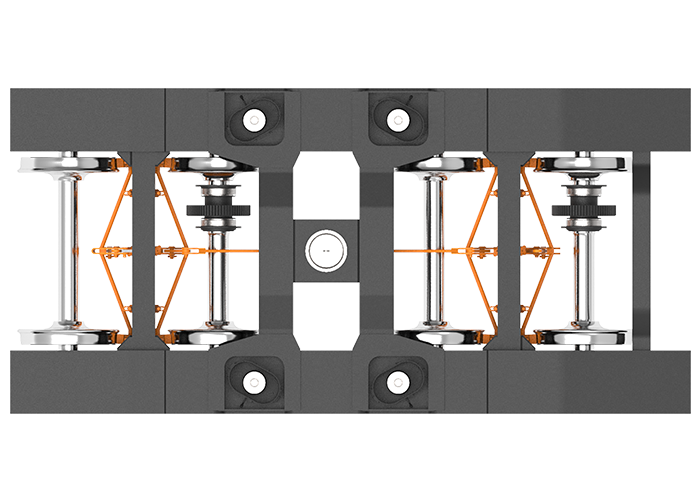

This kind of bogie is mainly used in railway engineering vehicles for transporting rails and bridges. The bogie is four-axle welded frame type bogie consisting of a welded frame, two sets of power wheel sets and two sets of non-powered wheel sets, an axle box suspension device, a basic braking device, a lower side bearing device and other ancillary components.
