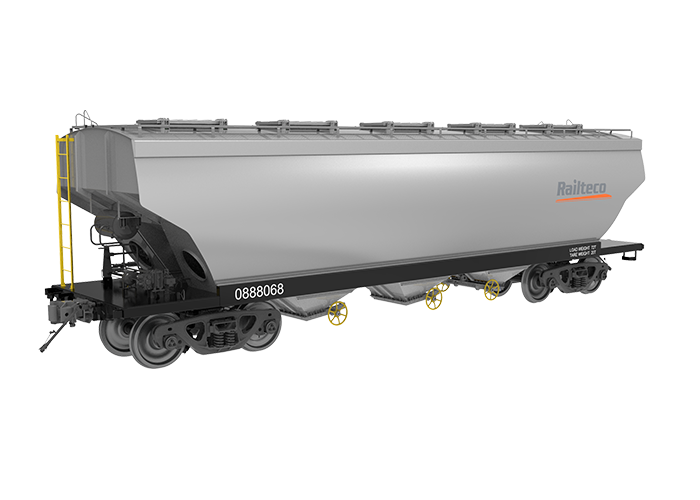

RTH03 GRAIN HOPPER WAGON


Tare weight
≤20t
Payload
54t
Capacity
66m³
Capacity
18.5t
Track gauge
1067mm
Speed
80km/h

DESCRIPTION

The wagon is suitable for carrying bulk goods, such as grain, corn, soya etc., which need to be protected against weather conditions. Loading hatches are covered with five independent covers, unloading hatches are covered with sliding doors. The wagon is loaded from the top after the top covers are opened. Top covers are manually operated from wagon top platform. The wagon is unloaded from the bottom hatches. Sliding doors are manually operated from both wagon sides, each door separately. The goods are unloaded between the rails. The wagon design meets the requirements of AAR standard.
