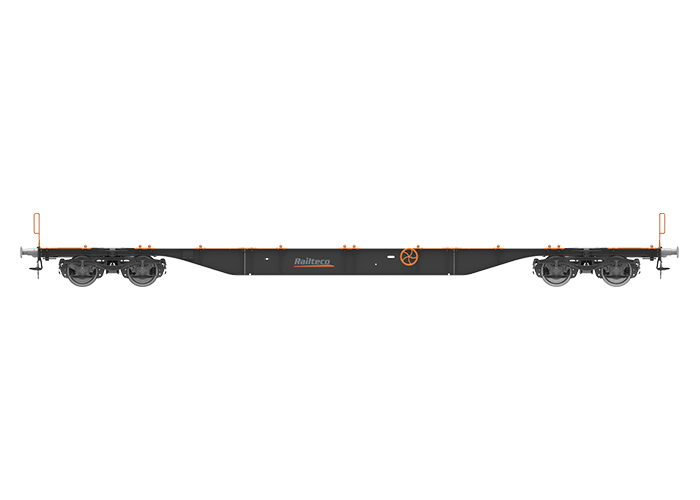

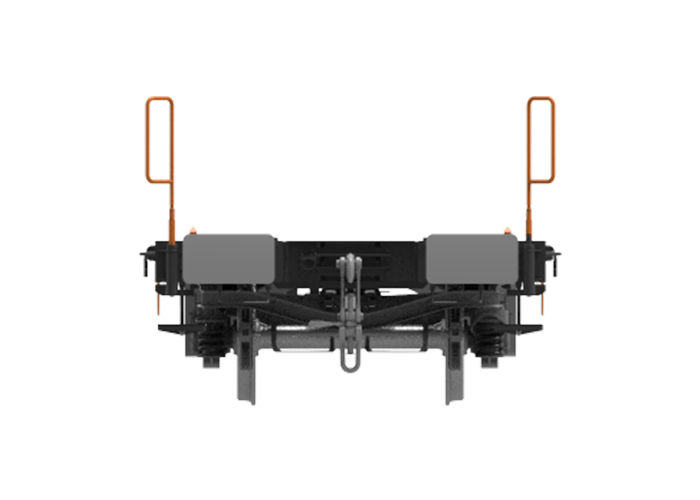

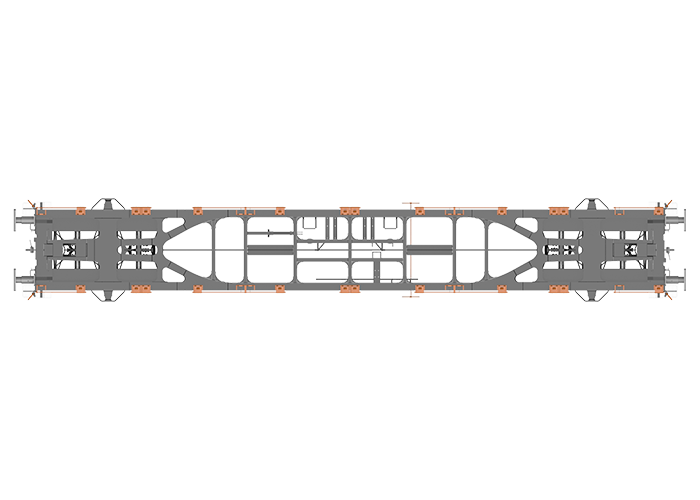

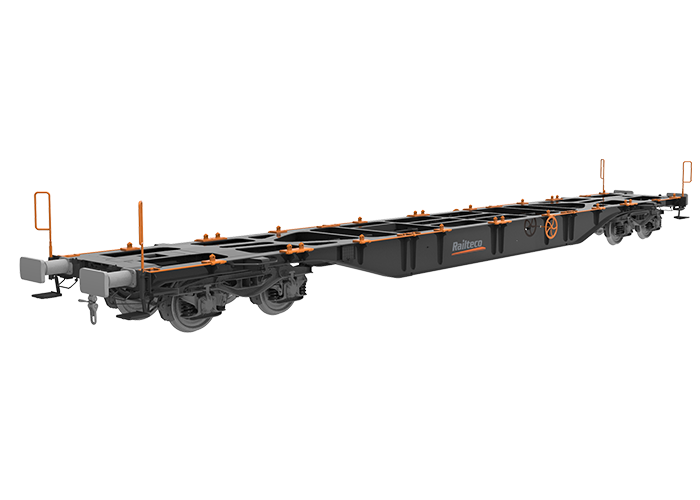

RTH08 SGNSSS60’ CONTAINER WAGON


Tare weight
≤20t
Payload
70t
Axle load
≤22.5t
Track gauge
1435mm
Speed
120km/h
Loading height
1155mm

DESCRIPTION

Main characteristic.The wagon is suitable for carrying containers and swap bodies of various lengths (20',30',40') classified in UIC592.The wagon design meets the requirements of TSI, EN, UIC standard.The max. operation speed is 120km/h.

Capabilities
 Series 1 freight containers – 1CX,1C,1CC,1BX,1B,1BB,1AX,1A,1AA.
 Symmetrical swap bodies–(20),(21),22,23,24,(26),(29),(30),(31),40,42,(44),(45).
 Asymmetrical swap bodies–NA+(81),82,(84),(85),(86)(1);(60)(2)(3)
 Loading possibilities are in accordance with loading diagram
